Silver Coated Copper Filled HD Silicone (ECR-110)

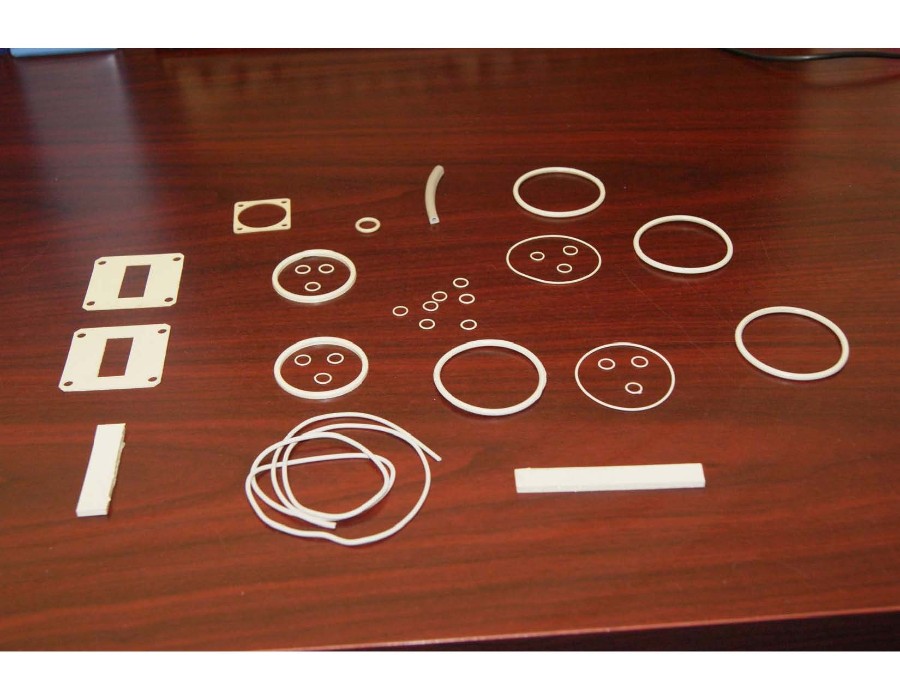

Available as below:
- * Tubing All Products are manufactured in Brea, CA . USA
- * Cords
- * Solid D-Profiles
- * Hollow D-Profiles CALL US: 1-714-582-7718 / 714-414-0977
- * Solid P-Profiles Email: emigaskets@gmail.com
- * Hollow P-Profiles
- * Wave Guide Gaskets
- * Die-cut Gaskets
- * Molded Gaskets
- * Extruded Gaskets
- * Molded Sheets
- * Molded O-Rings
- * Molded D-Rings
- * Molded P-Rings
- * Custom Extruded Shapes (profiles)
- * Custom Molded Parts
Product Description:
This material is specifically engineered for EMI/RFI applications where it will subject to Electromagnetic Impulse (EMP) environment. This material will withstand temperature from -55°C to 125°C. Excellent in Electrical Conductivity. Very Mild in Galvanic Corrosion Resistance. Typically, it is common used in military applications. The characteristics are included as follow:
- - EMI/RFI Shielding
- - Hot/Cold Temperatures
- - Conduct electrons throughout the material
- - Ozone Resistance
- - Low Outgassing Resistance
- - Temperature Stability between -45°C to 125°C
- - Military Applications
Applications:
Military Applications, Protect Equipment from Electromagnetic Impulse Surge.
Specifications:
- - Specific Gravity (g/cc): 4.00 ± .25
- - Hardness (Shore A): 85 ± 7
- -Tensile (psi): 400 Min
- -Elongation (%): 100 Min / 300 Max
- - Tear Strength (ppi): 35 Min
- - Volume Resistivity (ohm-cm): 0.005
